Clamp Changer

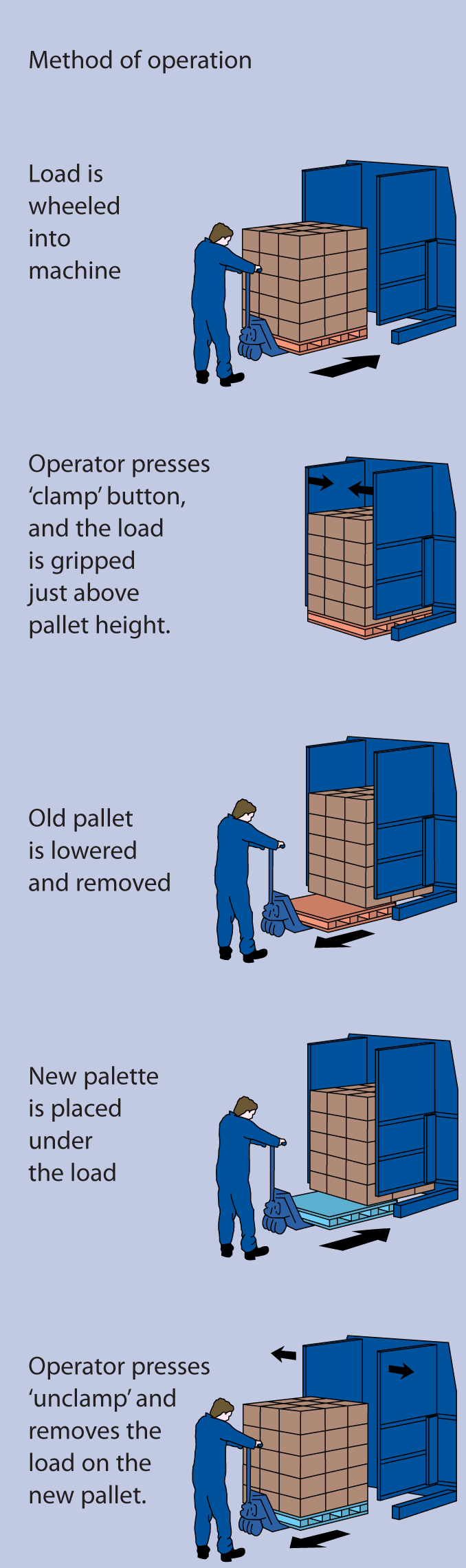

The Premier Clamp Changer has been developed in response to customer requests for a pallet changing method that does not require tipping or inverting of the load. It has twin, soft rubber faced clamp plates that gently grip the product. The clamping pressure on the load is adjustable, and can be increased to the point where the machine will hold a load weighing up to 1000kgs.
| Clamp Changer Specifications | ||||
| Sidewalls | 1200mm deep | |||
| Sidewalls Opening Range | 700mm x 1300mm | |||
| Maximum Load Height | No Restriction | |||
| Loading Capacity | 1000 kgs | |||
| Power Supply | 3 phase / 400V / 16 amp | |||
| Motor Size | 2.2kW | |||
| Controls | 24V (Hold to run push button) | |||
|
Actual Operating Space |
A. Width 2590mm B. Depth 1895mm C. Height 2195mm |
|||
|
Standard Shipping Dimensions (machine only) |
Width 2590mm Depth 1895mm Height 2195mm |
|||
